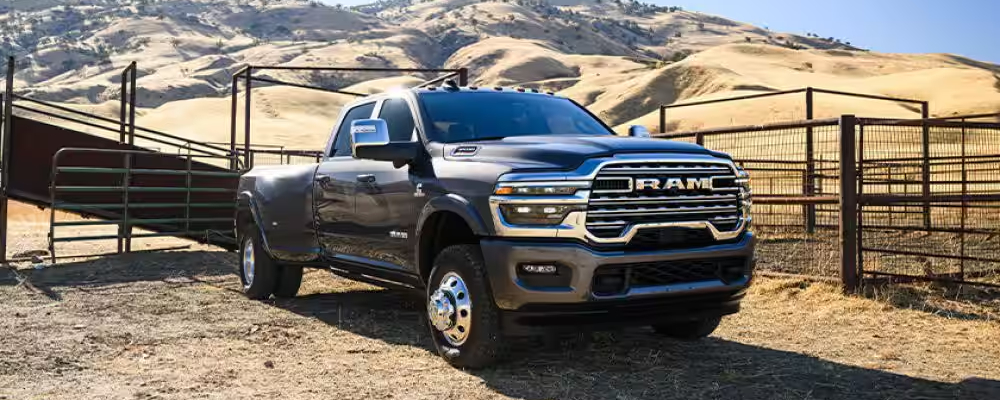

2025 RAM 3500 Exterior

If you’re looking for an attractive work truck for your Stanton jobs, or if you need a competent hauler for Morehead vacations, the RAM 3500 is the truck for you. This pickup will also turn heads wherever you drive, thanks to the range of 2025 RAM 3500 colors and other exterior features. Learn more about the RAM 3500 dimensions, including the RAM 3500 bed dimensions, below, then contact the team at Mann Chrysler Dodge Jeep Ram to schedule your test drive.

2025 RAM 3500 Dimensions

One of the first things you need to know about a pickup is how big it is. That’s why we’ve listed out all the combinations of RAM 3500 dimensions here. Note that the exact dimensions of your truck depend on its trim level, cab style, and bed size:

TRADESMAN®

Crew Cab 8-foot box

• Length: 260.8 inches
• Width: 79.4 inches
• Height: 78.4 inches
• Wheelbase: 169.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 11,150 pounds (4×2) / 11,440 pounds (4×4)
• Turning radius: 26.8 feet (4×2) / 26.9 feet (4×4)

Crew Cab 6-foot 4-inch box

• Length: 237.4 inches
• Width: 79.4 inches
• Height: 78.4 inches (4×2) / 79.8 inches (4×4)
• Wheelbase: 149.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,750 pounds (4×2) / 11,040 pounds (4×4)
• Turning radius: 23.8 feet

Regular Cab 8-foot box

• Length: 232 inches
• Width: 79.4 inches
• Height: 77.8 inches (4×2) / 79.5 inches (4×4)
• Wheelbase: 140 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,750 pounds (4×2) / 11,040 pounds (4×4)
• Turning radius: 22.7 feet (4×2) / 20.8 feet (4×4)

BIG HORN®

Crew Cab 8-foot box

• Length: 260.8 inches
• Width: 79.4 inches
• Height: 78.4 inches
• Wheelbase: 169.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 11,150 pounds (4×2) / 11,440 pounds (4×4)
• Turning radius: 26.8 feet (4×2) / 26.9 feet (4×4)

Crew Cab 6-foot 4-inch box

• Length: 237.4 inches
• Width: 79.4 inches
• Height: 78.4 inches (4×2) / 79.8 inches (4×4)
• Wheelbase: 149.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,750 pounds (4×2) / 11,040 pounds (4×4)
• Turning radius: 23.8 feet

Regular Cab 8-foot box

• Length: 232 inches
• Width: 79.4 inches
• Height: 77.8 inches (4×2) / 79.5 (4×4)
• Wheelbase: 140 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,750 pounds (4×2) / 11,040 (4×4)
• Turning radius: 22.7 feet (4×2) / 20.8 feet (4×4)

LARAMIE®

Crew Cab 8-foot box

• Length: 260.8 inches
• Width: 79.4 inches
• Height: 78.4 inches
• Wheelbase: 169.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 11,150 pounds (4×2) / 11,440 pounds (4×4)
• Turning radius: 26.8 feet (4×2) / 26.9 feet (4×4)

Crew Cab 6-foot 4-inch box

• Length: 237.4 inches
• Width: 79.4 inches
• Height: 78.4 inches (4×2) / 79.8 inches (4×4)
• Wheelbase: 149.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,750 pounds (4×2) / 11,040 pounds (4×4)
• Turning radius: 23.8 feet

Mega Cab 6-foot 4-inch box (4×4 only)

• Length: 249.9 inches
• Width: 79.4 inches
• Height: 78.5 inches
• Wheelbase: 160.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,190 pounds
• Turning radius: 25.3 feet

LIMITED

Crew Cab 8-foot box (4×2 only)

• Length: 237.4 inches
• Width: 79.4 inches
• Height: 79.8 inches
• Wheelbase: 149.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,750 pounds
• Turning radius: 23.8 feet

Crew Cab 6-foot 4-inch box

• Length: 237.4 inches
• Width: 79.4 inches
• Height: 79.8 inches
• Wheelbase: 149.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,750 pounds (4×2) / 11,040 (4×4)
• Turning radius: 23.8 feet

Mega Cab 6-foot 4-inch box (4×4 only)

• Length: 249.9 inches
• Width: 79.4 inches
• Height: 78.5 inches
• Wheelbase: 160.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,190 pounds
• Turning radius: 25.3 feet

LIMITED LONGHORN™

Crew Cab 8-foot box

• Length: 260.8 inches
• Width: 79.4 inches
• Height: 78.4 inches
• Wheelbase: 169.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 11,440 pounds
• Turning radius: 26.9 feet

Crew Cab 6-foot 4-inch box

• Length: 237.4 inches
• Width: 79.4 inches
• Height: 79.8 inches
• Wheelbase: 149.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,750 pounds (4×2) / 11,040 pounds (4×4)
• Turning radius: 23.8 feet

Mega Cab 6-foot 4-inch box (4×4 only)

• Length: 249.9 inches
• Width: 79.4 inches
• Height: 78.5 inches
• Wheelbase: 160.5 inches
• Track width (front/rear): 67.7 inches / 67.1 inches
• GVWR: 10,190 pounds
• Turning radius: 25.3 feet

2025 RAM 3500 Bed Dimensions

Whatever you’re hauling, you’ll find a fit with the RAM 3500 bed dimensions. You have two bed lengths to choose from for your Winchester drives:

6-foot 4-inch box

• Pickup box cargo length: 76.3 inches
• Pickup box minimum width: 51 inches
• Pickup box maximum width: 66.4 inches
• Pickup box cargo volume: 57.5 inches
• Pickup box depth: 20.1 inches

8-foot box

• Pickup box cargo length: 98.3 inches
• Pickup box minimum width: 51 inches
• Pickup box maximum width: 66.4 inches
• Pickup box cargo volume: 74.7 cubic feet
• Pickup box depth: 20.2 inches

2025 RAM 3500 Colors

No matter which of these 2025 RAM 3500 colors you choose, everyone else on the road will be green with envy. Talk with our experts to learn more about your options, as some of these come at an extra cost or are not available everywhere:

TRADESMAN® / BIG HORN®

• Bright White Clear-Coat Exterior Paint
• Flame Red Clear-Coat Exterior Paint
• Diamond Black Crystal Pearl-Coat Exterior Paint
• Forged Blue Metallic Exterior Paint
• Granite Crystal Metallic Clear-Coat Exterior Paint
• Patriot Blue Pearl-Coat Exterior Paint
• Agriculture Red Exterior Paint
• Black Clear-Coat Exterior Paint
• Construction Yellow Exterior Paint
• Detonator Yellow Clear-Coat Exterior Paint
• Holland Blue Exterior Paint
• Light Green Exterior Paint
• Midnight Blue Pearl-Coat Exterior Paint
• National Safety Yellow Exterior Paint
• Omaha Orange Exterior Paint
• Republic Blue Exterior Paint
• School Bus Yellow Exterior Paint
• Timberline Green Pearl-Coat Exterior Paint
• Utility Orange Exterior Paint
• Yellow Exterior Paint

LARAMIE® / LIMITED

• Bright White Clear-Coat Exterior Paint
• Ceramic Grey Clear-Coat Exterior Paint
• Flame Red Clear-Coat Exterior Paint
• Diamond Black Crystal Pearl-Coat Exterior Paint
• Forged Blue Metallic Exterior Paint
• Granite Crystal Metallic Clear-Coat Exterior Paint

LIMITED LONGHORN™

• Bright White Clear-Coat Exterior Paint
• Diamond Black Crystal Pearl-Coat Exterior Paint
• Forged Blue Metallic Exterior Paint
• Granite Crystal Metallic Clear-Coat Exterior Paint

Discover the New RAM 3500 with Mann Chrysler Dodge Jeep Ram

Ready to see the 2025 RAM 3500 colors for yourself? Stop by our Mt Sterling dealership today to tour our new inventory to find yours, or give us a call at 859-762-1231 to schedule a visit at your convenience. In the meantime, continue your research or apply for financing online.
